Ventilation Filtration Systems
Ventilation Filtration System (VFS) is a type of air filtration equipment that designed for meeting the needs of indoor air ventilation and purification. It is filled with IIECC Filtration Media to purify the air from outdoor to protect people from air pollution.
| VDS Series | VFS Series | PLA Series | MAHS Series |

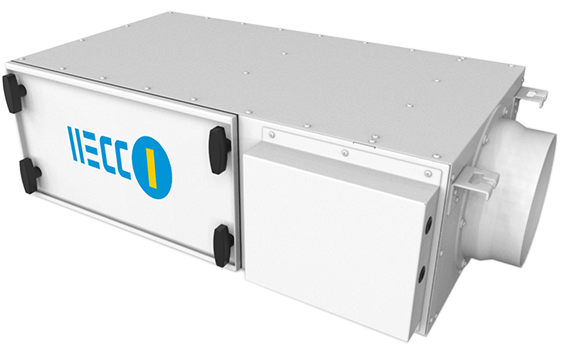

VDS-CU600
Introduction
• While continuously introducing fresh air into the room, purify the particulate matter and harmful gases in the air;
• Multiple filter sections can continuously purify bacteria, viruses, odors and harmful chemical gases in the air, which can effectively prevent the spread of bacteria and viruses and prevent cross-infection of children's respiratory diseases;
Features
-
Stable Air Volume & High Energy Efficiency
EC brushless DC motor, stable air volume, low noise, high energy efficiency
-
Quiet Structure Design
Optimized structure and air outlet design can achieve high static pressure, low noise and low noise
-
Compact Body
Easy to install, suitable for ceiling installation
Specifications
| Model: VDS‐CU600 | Rated Voltage: AC 220V | Rated Frequency: 50 Hz |
| Rated Power: 177 / 130 / 88 W | Max Air Volume: 637 / 566 / 479 m³/h | Rated Air Volume: 515 / 420 / 350 m³/h |
| Overbottom Pressure: 120 / 120 / 120 Pa | Noise: 45 / 44 / 41 dB﴾A﴿ | Product Size: 961×465×255 mm |
| Net Weight: 42 Kg |
Configurations
| Control Panel (optional): 3-Speed Control, 458 Control and 0-10V Stepless Speed Control | IIECC Flitration Media Formula(optional): Users can choose the type and formula of filtration media according to actual needs to achieve the best purification effect. |

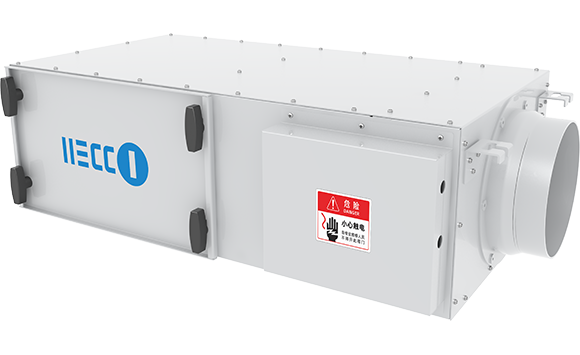

VFS-U500 ceiling-type Ventilation Filtration System
Introduction
VFS-U500 ceiling-type Ventilation Filtration System is designed for Uni-flow micro-positive pressure. The triple-filter section can effectively discharge odors, harmful chemical gases and pollutants in various rooms to outside. While continuously inputting fresh air into the room, VFS-U500 also can effectively purify the particulate matter and harmful gases in the fresh air. Enjoying fresh and clean air without opening the window, VFS-U500 can easily meet the health needs of the human body.
Features
-
MULTIPLE PURIFICATION
• Metal Pre-filter —— Pre-filter filters large particles such as dust and hair. It is resistant to special acids and alkalis and can be reused after washing.
• Anti-bacterial & Anti-mildew layer —— Anti-bacterial & anti-mildew layer is moisture-proof, mildew-proof, and mites prevent microbial growth. It can provide protection for allergic people and infants.
• 3M FiltreteTM M18 filter material —— Filtering PM2.5 and PM0.3, 99.97% filtering efficiency. 2.3㎡ expanded area, low resistance and high efficiency, high dust holding and long service life.
• 2kg IIECC Filtration Media —— IAQ-Clear media can effectively remove NO₂, SO₂, O₃ and other common gaseous pollutants in fresh outdoor air, higher purification efficiency and longer service life. -
EC MOTOR (BRUSHLESS)
Stable blowing rate, low noise, high energy efficiency, working continuously 24 hours a day, energy saving, 145W under highest speed mode and only 48W under low speed mode.
-
SILENT STRUCTURE DESIGN
The optimized air cavity structure and cellular air outlet design realize high static pressure and low noise, only 34 dB(a) noise under the low speed mode.
-
SILENT STRUCTURE DESIGN
Easy installation, space saving, suitable for residential ceiling installation.
Specifications
| Model: VFS-U500 | Power: 220V∽50 Hz | Rated Power: 145/90/44 w |
| Noise: 40/38/34 dB(A) | Max Air Volume: 600/560/450 m³/h | Rated Air Volume: 520/410/260 m³/h |
| Overbottom Pressure: 120/120/120 Pa | Weight: 36 kg | Ingress Protection: IP54 |

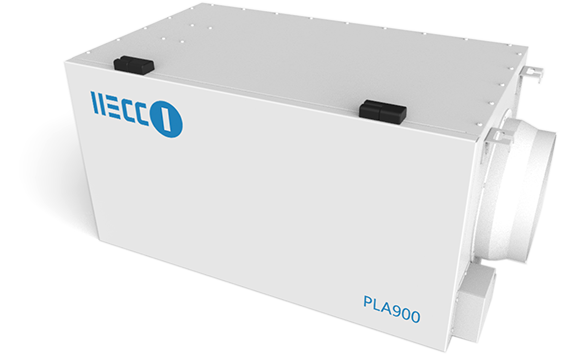

PLA900
Introduction
Homes today are built to be as energy efficient as possible. To prevent heat loss, newer homes are more airtight. This reduces the cost to heat a house but in effect, it lowers indoor air quality. Regardless, in any home, new or old, indoor air quality is typically 2 to 5 times more polluted than outdoor air.
PLA900 filters the air coming from the air exchanger and also continuously filters the indoor air. The active carbon filter can reduce odors and the inner HEPA filter effectively controls and eliminates dust, pollen, mold, smoke, bacteria and attached viruses.
Features
-
Compact: easily fit in space on top of suspended ceilings.
-
Quiet: fully enclosed acoustically dampened. We recommend using muffler in exhaust.
-
Continuously filters indoor air.
-
3 speeds.

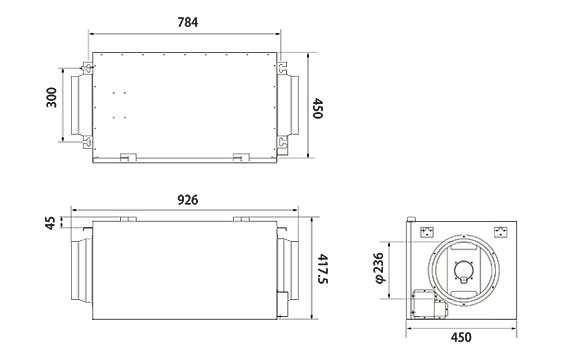

Specifications
| Model: PLA900 | Power: 220V∽50 Hz | Rated Power: 280/240/210 w |
| Noise: 37/34/29 dB(A) | Air Volume: 650/500/350 m³/h | Weight: 36 kg |
| Ingress Protection: IP54 |
MAHS offers total design flexibility for the control of particulate contaminants as well as gaseous contaminants.

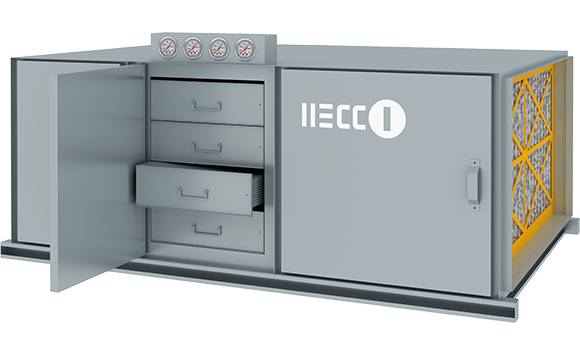

MAHS Series（Modular Air Handling System）
Introduction
IIECC Modular Air Handling System (MAHS) offers all the advantages of a conventional duck access housing unit: total flexibility in the selection and combination of particulate filter elements, more productive use of mechanical space, greater ease of servicing, reduced maintenance costs, and more enhanced air quality. Maximum versatility in the selection of gas phase filter elements allows the designer to choose among a broad range of specially-formulated filtration media and the right combination of gas phase filter elements to meet the precise needs of each installation. The Modular Air Handling System (MAHS) offers total design flexibility for the control of particulate contaminants as well as gaseous contaminants.
Features
-
COMPLETELY FACTORY ASSEMBLED
The MAHS is Shipped ready to be Installed. No field assembly is required.
-
RUGGED CONSTRUCTION
The MAHS is fabricated from zinc-coated steel protected by a three coat corrosion resistant paints. Standard housing features a Penta-Post frame design reinforced by a sturdy U-channel base for structural rigidity and maximum operating life.
-
FILTER MOUNTING TRACK
The MAHS features an extruded aluminum filter mounting track incorporating a nylon pile seal to prevent air bypass. A wide variety of optional tracking sizes makes it possible to accept virtually any specified configuration of filter elements within the unit.
-
SIZE FLEXIBILITY
A wide range of available sizes allows the MAHS to be tailored to the needs of a customer's air handling system, regardless of the system capacity.
-
GASEOUS FILTRATION MODULES
Each removable module includes quick-release access plates which require no service tools.
-
SEALING INTEGRITY
Positive seal is accomplished by providing neoprene foam seals on all doors, nylon pile seals on media filter tracks and leak proof silicone sealant on all mating joints.
-
EASY MAINTENANCE
Heavy-duty side access doors employ quick release latches to facilitate filter inspection and change out.
-
CHOOSE OF MAJOR SECTION AND SUBASSEMBLY
According to customer request, MAHS can be constructed with fan-motor and filter section, or filtration section stand alone.
Configurations
| 20% / 30% efficiency, particulate pre-filters. | 60% / 90% efficiency particulate intermediate filters. | Rigid, deep bag or high efficiency HEPA filters. |
| Inertial separators as pre-filters for high dust loading applications. | Various Filtration Media formulations to meet specific gaseous contaminant removal requirements. |
