Recirculation Purification System
Recirculation Purification System (RPS) is an independent and complete air purification equipment. It is designed to be placed indoors, and the air is circulated and purified to protect people from indoor air pollution, and make sure that the electronic equipment in the room can't be corroded.
| PDS Series | RPS Series | APS Series |

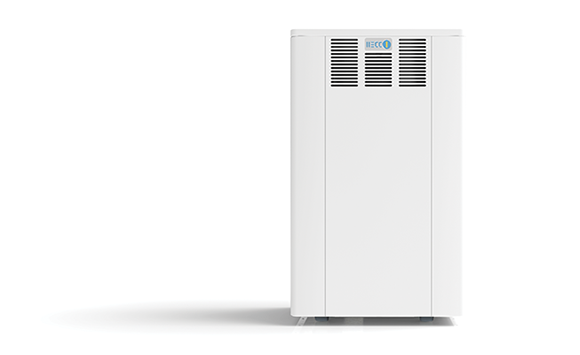

PDS-M800
Introduction
The PDS-M800 has a built-in IIECC AS-Sorb media, which can work 24 hours a day under the coexistence of humans and machines. It is widely used in large indoor spaces such as colleges, medical institutions and offices.
Specifications
| Model: PDS-M800 | Rated Voltage: AC 220V | Rated Frequency: 50 Hz |
| Rated Power: 105 W | CADR (Particulate): 830 m³/h | CADR (Formaldehyde): 244 m³/h |
| CCM (Particulate): P4 | CCM (Formaldehyde): F4 | Cleaning Energy Efficiency (Particulate): High-efficiency grade |
| Cleaning Energy Efficiency (Formaldehyde): High-efficiency grade | Simulated Field Test - Killing Rate (Staphylococcus albus 8032): >99.99% / >99.99% / >99.99% | Field Test - Death Rate (Natural bacteria in air ): 96.40% / 95.48% / 95.66% |
| Noise (Max): 66 dB﴾A﴿ | Product Size: 400×400×775 mm | Net Weight: 18 Kg |

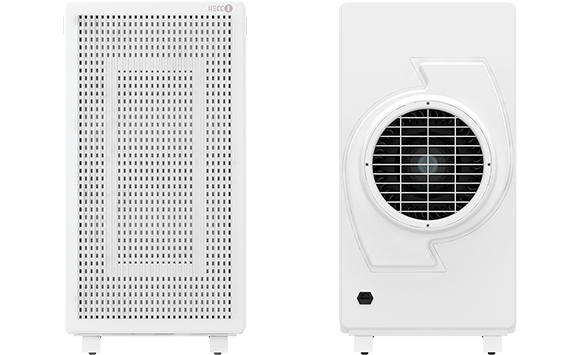

PDS-M1000
Introduction
The PDS-M1000 has a built-in IIECC AS-Sorb media, which can work 24 hours a day under the coexistence of humans and machines. It is widely used in large indoor spaces such as colleges, medical institutions and offices.
Specifications
| Model: PDS-M1000 | Rated Voltage: AC 220V | Rated Frequency: 50 Hz |
| Rated Power: 149 W | CADR (Particulate): 1020 m³/h | CADR (Formaldehyde): 280 m³/h |
| CCM (Particulate): P4 | CCM (Formaldehyde): F4 | Cleaning Energy Efficiency (Particulate): High-efficiency grade |
| Cleaning Energy Efficiency (Formaldehyde): High-efficiency grade | Removal Rate (H1N1): ≥99.9% | Removal Rate (EV71): ≥99.9% |
| Eliminating Bacterial Rate(Pseudomonas aeruginosa): 99.99% | Simulated Field Test - Killing Rate (Staphylococcus albus 8032): 99.98% / 99.98% / 99.99% | Field Test - Death Rate (Natural bacteria in air ): 98.27% / 98.73% / 98.09% |
| Noise (Max): 64 dB﴾A﴿ | Product Size: 968×500×340 mm | Net Weight: 22 Kg |
RPS series products are mainly suitable for homes and offices. All RPS series products have a built-in mixed IIECC filtration media including AS-Sorb media, which has excellent performance in controlling the growth of bacteria and fungi, greatly reducing the chance of infection. In addition, it can quickly remove formaldehyde, TVOC and other common indoor toxic and harmful gases; HEPA filters can effectively remove PM0.3, PM2.5, smoke, microorganisms, allergens and other particulate matter, biring you a healthy, safety and pure living environment.

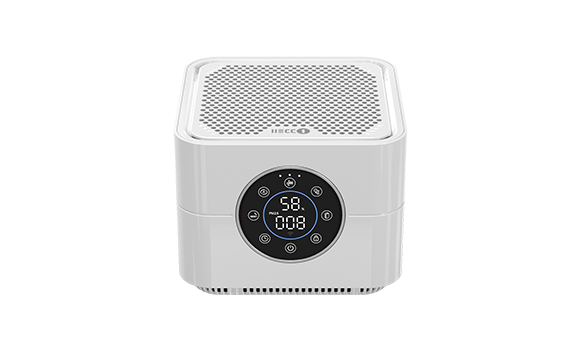

RPS-D70
Introduction
Specially designed for office users.
Sterilizes, removes second-hand smoke and efficiently purifies personal breathing space.
Specifications
| Model: RPS-D70 | CADR (Particulate): 70 m³/h | CCM (Particulate): > 5000 mg |
| Cleaning Energy Efficiency (Particulate): 13.46 | Removal Rate (Particulate≥0.3 μm): >99.99% | Removal Rate (Formaldehyde): 94.5% |
| Removal Rate (TVOC): 91.0% | Removal Rate (H1N1) : >99.99% | Removal Rate (Staphylococcus albus): 99.95% |
| Noise (Max): 56 dB(A) | Applicable Area (GB): 4.9～8.4 m² | Input: 12V ⎓ 1.5A |
| Rated Power: 5.2 W | Energy Efficiency Level: 1 | Net weight (including power supply): 1 Kg |
| Product size: 158 × 158 × 119 mm |

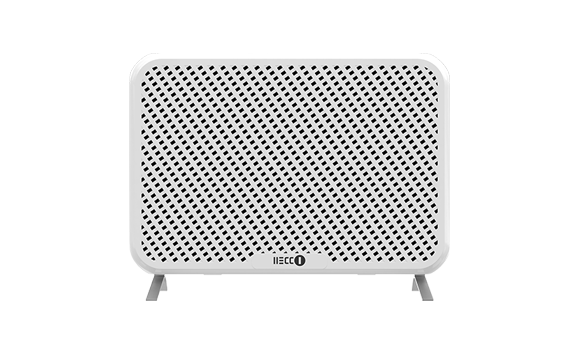

RPS-W280
Introduction
RPS-W280 cleans the air while mounted on the wall and out of the way. Perfect for saving space in homes, offices, medical facilities, and schools. It efficiently covers 38 m².
Specifications
| Model: RPS-W280 | Rated Voltage: AC 110-240 V | Rated Frequency: 50/60 Hz |
| Rated Power: 33 W | CADR (Particulate): 322 m³/h | CADR (Formaldehyde): 75 m³/h |
| CCM (Particulate): P4 | CCM (Formaldehyde): F4 | Cleaning Energy Efficiency (Particulate): High-efficiency grade |
| Cleaning Energy Efficiency (Formaldehyde): High-efficiency grade | Removal Rate (Particulate（≥0.3 μm）): >99.99% | Removal Rate (Mite Allergen): 96.72% |
| Killing Rate (Influenza A virus A/PR8/34 H1N1): >99.99% | Eliminating Bacterial Rate(Aspergillus niger): 99.98% | Noise (Sleep Mode): 34.1 dB(A) |
| Noise (Max): 64 dB(A) | Applicable Area (GB): 22～38 m² | Energy Efficiency Level: 2 |
| Product Size: 585×405×100 mm | Net Weight (With/Without Desktop & Wall Mount): 5.6 / 7 Kg |

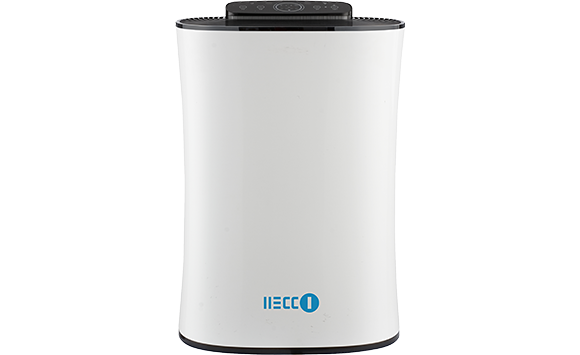

RPS-M300
Introduction
Efficient Purification, Care for Family Health
Applicable Area: 24~41 m²
Specifications
| Model: RPS‐M300 | Rated Voltage: AC 220V | Rated Frequency: 50 Hz |
| Rated Power: 46 w | CADR (Particulate): 344 m³/h | CADR (Formaldehyde): 70 m³/h |
| CCM (Particulate): P4 | CCM (Formaldehyde): F4 | Cleaning Energy Efficiency (Particulate): High-efficiency grade |
| Cleaning Energy Efficiency (Formaldehyde): High-efficiency grade | Removal Rate (Particulate（≥0.3 μm）): >99.99% | Removal Rate (Mite Allergen): 97.79% |
| Removal Rate (Influenza A virus A/PR8/34 H1N1): ≥99.9% | Noise (Sleep Mode): 34.5 dB(A) | Noise (Max): 65 dB(A) |
| Applicable Area (GB): 24～41 m² | Energy Efficiency Level: 3 | Product Size: 405×250×592 mm |
| Net Weight: 7.2 Kg |

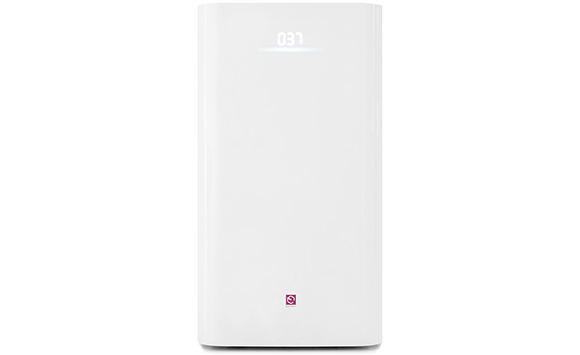

RPS-M700
Introduction
Large Air Volume, Sterilization & Disinfection, Full-effect Purification
Applicable Area: 56~96 m²
Specifications
| Model: RPS‐M700 | Rated Voltage: AC 220V | Rated Frequency: 50 Hz |
| Rated Power: 65 W | CADR (Particulate): 800 m³/h | CADR (Formaldehyde): 220 m³/h |
| CADR (TVOC): 270 m³/h | CCM (Particulate): P4 | CCM (Formaldehyde): F4(>5000 mg) |
| Cleaning Energy Efficiency (Particulate): High-efficiency grade | Cleaning Energy Efficiency (Formaldehyde): High-efficiency grade | Removal Rate (Particulate（≥0.3 μm）): 99.97% |
| Removal Rate (H3N2): 99.95%, 99.94%, 99.96% | Death Rate (Natural Bacteria in Air): 95.82%, 94.29%, 92.73% | Noise (Sleep Mode): ≤ 35.1 dB﴾A﴿ |
| Noise (Max): < 66 dB﴾A﴿ | Applicable Area (GB): 56～96 m² | Energy Efficiency Level: 1 |
| Product Size: 400×390×720 mm | Net Weight: 18 Kg |
APS Series is an independent and complete air purification unit. It is designed to be placed indoors, with built-in multi-layer filter section to circulate and purify the indoor air, effectively remove toxic and harmful gases and PM2.5, smoke, microorganisms, allergens and other particulate matter to protect people, also to protect electronic equipments against corrosion, etc.

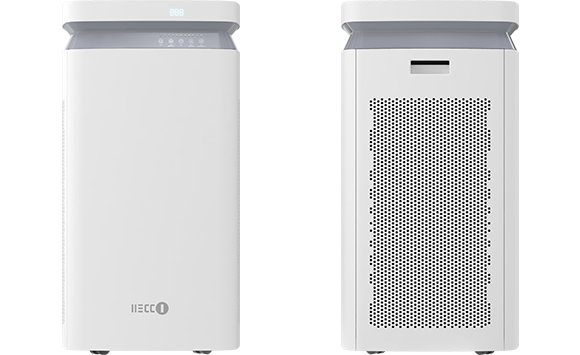

APS Series
Introduction
APS-480M is designed to remove particulate matters and toxic gases. Large CADR can meet the needs of large-area purification, especially for protecting family from particulate pollution.
APS-550M is designed to long-term purify a variety of toxic and harmful gases commonly found in the interior. A variety of filtration media can be combined on demand. APS-550M is especially suitable for newly renovated homes and small office environments.
Features
-
PURIFYING TOXIC AND HARMFUL GASES EFFECTIVELY AND NO RISK OF SECONDARY POLLUTION
The built-in IIECC Filtration Media can efficiently purify various toxic and harmful gases, such as formaldehyde, benzene, toluene, xylene, sulfur dioxide, and nitrogen dioxide. Filtering by adsorption, absorption, Chemisorption and catalysis process, this process is instantaneous and irreversible and can avoid secondary pollution effectively.
-
SUITABLE FOR LARGE-AREA PURIFICATION NEEDS
CADR is an internationally recognized main indicator for evaluating the performance of air purifiers. The applicable indoor area for an air purifier is generally derived from CADR. The larger the CADR, the higher the purification efficiency and the larger the applicable area.
-
EQUIPPED WITH HEPA13 FILTER
Equipped with a HEPA13 filter which can remove five major types of particulate matters: respirable particulate matter, cigarette smoke, microbes, pollen/spore/allergens, and pet allergens.
-
CONTINUOUS WORKING LIFE UP TO 50,000 HOURS
The combination of ebm-papst GreenTech EC Radical centrifugal fan, green motor and innovative impeller makes the air purification equipment installed with this fan more outstanding. Continuous working life is up to 50000 hours.
-
ENCIRCLED AIR SUPPLY
By changing the air supply mode of the traditional air purifiers, the APS series adopts the 'two sides' structure to carry out the air supply, so that the clean air can reach every corner of the room at a comfortable wind speed.
Specifications
| Model | APS-480M | APS-550M |
| CADR (Particulate Matter) | > 800 m³/h | 530 m³/h |
| Formaldehyde removal rate (1 hour) | 96% | 98% |
| Benzene, Toluene, Xylene removal rate (1 hour) | >99% | |
| Sulfur dioxide removal rate (1 hour) | >99% | |
| Nitrogen dioxide removal rate (1 hour) | >99% | |
| Purification efficiency | > 4.76 | 3.33 |
| Windshield | Stepless Speed | Stepless Speed |
| Power(Maximum) | 160 w | 160 w |
| Size | 842×305×508 mm | 842×305×508 mm |
| Weight (Without Filtration Media Box) | 24 kg | 24 kg |
| Wheel | Yes | Yes |
| Machine Material | Steel | Steel |

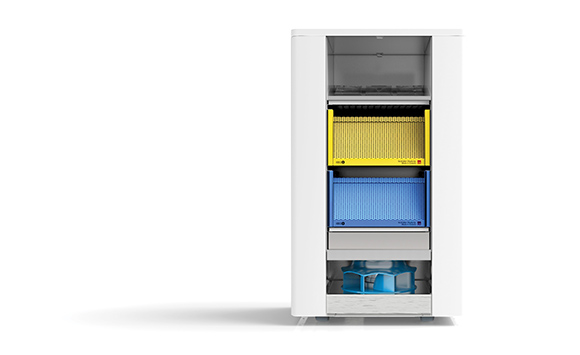

Configurations
| Model | APS-480M | APS-550M |
| Pre-filter | Aluminum Pre-filter | Aluminum Pre-filter |
| Filtration Media Box | 1 | 2 |
| HEPA Filter | HEPA13 | HEPA13 |
| CADR (Particulate Matter) | ebm-papst Radical Fan | ebm-papst Radical Fan |
